JACK PANELS
FRONT ACCESS MTPFA/TTPFA SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
FRONT ACCESS MTPFA/TTPFA SERIES

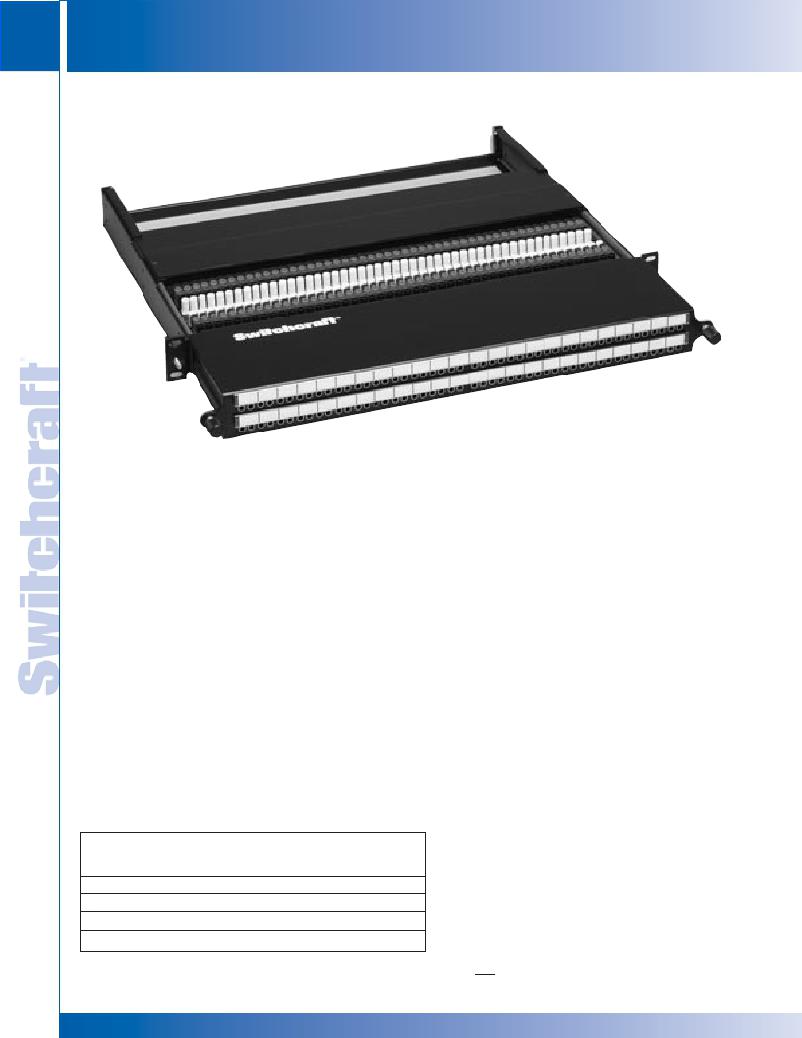

TTPFA96K1NS
The Front Access Series offers the end user the ease of
re-terminating patchpoints from the front of the rack as
opposed to the back. A slide out tray allows the user to slide
out the punchdown terminals, and reconfigure the unit. An
easy release mechanism on either side of the unit allows it to
be pushed back into place and easy to grip locking nuts tighten
the unit in place.
FEATURES AND BENEFITS
? Easy slide-out tray slides forward for
easy re-termination from the front of the rack
? Available with either 48 MT style or 96 TT style
jacks in a 1RU space
? Attractive, corrosion resistant nickel-plated,
steel frame jacks
? Gold-plated switching contacts reduce
contact resistance, improves reliability
? Extra wide designation strips for easy channel
identification
? Rugged, attractive black epoxy-finished
steel chassis
? Configurations available include normals
strapped and normals brought out
SPECIFICATIONS
MATERIALS (JACKS)
Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs: Nickel silver with welded contacts
Assembly Screws: Nickel-plated steel
Welded Contacts: Gold alloy
PANEL
Frame: C.R.S. black epoxy painted
Designation Strips: Black polycarbonate 94V-0
Designation Strip Covers: Clear polycarbonate
Jack Inserts: Thermoplastic 94V-0
MECHANICAL
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Operating: -20°C to +65°C
ELECTRICAL
Jack Contact Resistance: 30 milliohms
initial maximum; 50 milliohms after life
Jack Insulation Resistance: 10,000 megohms maximum
Dielectric Withstanding Voltage: 500V at 60 Hz AC
Working Voltage: 100 milliamps or less; maximum 56.5 VDC
Ordering Information
Part
Type of No. of
Number Jack Jacks Description
TTPFA96K1NS
TT 96 1.75" High, normals strapped
TTPFA96K1NO
TT
96
1.75" High, normals brought out
MTPFA48K1NS MT
MTPFA48K1NO MT
48
48
1.75" High, normals strapped
1.75" High, normals brought out
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
